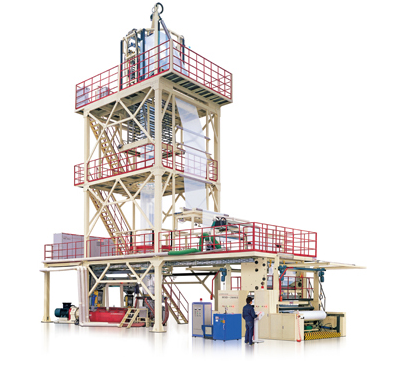

RBEW3B Three-layer Coextrusion Extra Film Width Packaging Blown Film Line

The RBEW Three-layer Coextrusion Extra Film Width Packaging Blown Film Line uses the latest technology of coextrusion and new design oscillating haul-off.


  • Air Exhausted type extrusion systems. The heat is exhausted out of the factory by using an air extraction cooling method. No effect to the ambient temperature around the bubble.
  • Central feeding die head in low height shorten melt flow path and reduce the residence time of the melt as it goes through the extrusion system.
  • Temperature controlling automatic air ring with high precision is easy to maintain. It reduces the film thickness tolerance by at least 30%.
  • Silicone bubble cage with anti-sticking foam rollers. No scratch to the film surface.
  • High strength vertical oscillating haul-off unit for over wide film.
  • Winder combining with three kinds of winding modes (contact, central and gap winding modes).

The application of a number of advanced technologies can greatly improve the productivity, making the film thickness more uniform, reducing the energy consumption and creating more value for users.



Main Specifications：

Model



RBEW-2500Q

RBEW-2800Q

RBEW-3200Q

Layers



3

Max. Film Layflat

mm

2300

2600

3000

Film Thickness

mm

0.02～0.12

Max. Output

kg/h

500

550

625

Resin



mLLDPE, LLDPE, LDPE, EVA, etc.

Screw Diameter

mm

ф80/ф90/ф80

ф90/ф110/ф90

ф90/ф120/ф90

Screw L/D Ratio

L/D

30：1

Max. Screw Rotating Speed

r/min

70～120

Main Motor Power

kW

75/90/75

90/132/90

90/160/90

Bubble Cooling Type



Dual-lip automatic air ring(working with inline auto gauge control system), IBC(internal bubble cooling system)

Oscillating Haul-off Type



±360°vertical oscillating haul-off unit

Haul-off Speed

m/min



45～120



Total Power

kW

480

580

610

Overall Dimension (L×W×H)

m

18×7×15

18×7×17

18×8×17

Weight

t

65

67

70

 All the above specifications are for your reference only. Please contact us for more details.
