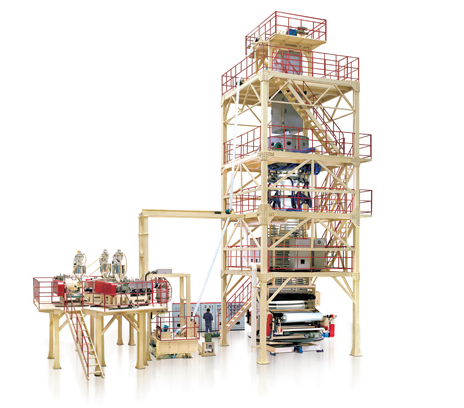

RBMS3 Three-layer Coextrusion Dual-bubble Blown Film Line for Heat Shrinkable Film
The POF line represents the improved design of dual-bubble forming heat-shrinkable blown film technology. The system features an advanced central feeding spiral die head and internal bubble cooling system, infrared radiant heaters and temperature measurement module, tension control system and double-station automatic contact/central/gap rotating winder.
The line excels at producing POF shrinkable film with PP/PE/PP structure has excellent properties, such as high transparency, low temperature resistance, twisting resistance and a high shrink ratio. They are ideal and environmentally friendly heat-shrinkable packaging film which is widely used for food, beverage, medicine, cosmetic, commodity, stationary, magazine, video tape, electrical components and machines.
Main specifications：
|
Model |
|
RBMS3-1300Q |
RBMS3-1800Q |
RBMS3-2000Q |
|
Layers |
|
3 |
||
|
Max. Film Layflat |
mm |
1100 |
1600 |
1800 |
|
Film Thickness |
mm |
0.012~0.025 |
0.012~0.025 |
0.012~0.025 |
|
Max. Output |
kg/h |
120 |
160 |
200 |
|
Resin |
|
PP\PE |
||
|
Screw Diameter |
mm |
ф40/ф65/ф40 |
ф55/ф80/ф55 |
ф60/ф90/ф60 |
|
Screw L/D Ratio |
L/D |
30:1 |
||
|
Max. Screw Rotating Speed |
r/min |
100 |
||
|
Max. Winding Diameter |
mm |
ф500 |
||
|
Max. Winding Speed |
m/min |
60 |
||
|
Total Power |
kW |
300 |
400 |
500 |
|
Overall Dimension (L×W×H) |
m |
12.5×7.0×9.5 |
13×7×13.8 |
15×7×15.4 |
|
Total Weight |
t |
35 |
40 |
50 |
|
|
|
|
|
|
All the above specifications are for you reference only. Please contact us for more details.
