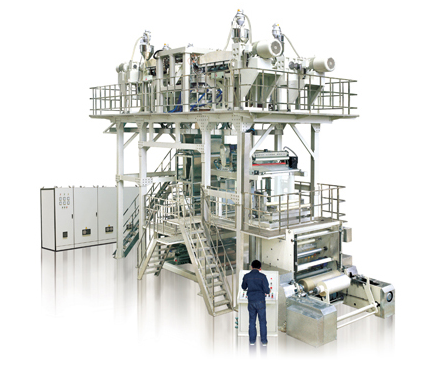

The line adopts the world advanced high-tech patent technology to produce both symmetrical and asymmetrical barrier films with excellent performance such as outstanding formability and high barrier performance. With more than 3 barrier layers, the film products are widely used in packaging of food, farming products, petrochemical and medical products.

Automatic die head, double water cooling ring, sizing water ring and oscillating haul-off system can be applied to meet different requirement and formula.

Model

RBMX5-1200Q

RBMX8-1200Q

Layers

5

8

Max. Film Layflat

mm

1025

Film Thickness

mm

0.04~0.20

Max. Output

kg/h

250

350

Resin

PP, PA, EVOH, mLLDPE, LLDPE, HDPE, EVA ,etc

Screw Diameter

mm

ф55 × 5

ф55× 8

Screw L/D Ratio

L/D

30:1

Max. Screw Rotating Speed

r/min

100

Main Motor Power

kW

22×5

22×8

Die Head Structure

Pancake die head

Oscillating Haul-off

±360°Horizontal oscillating haul-off unit

Haul-off Speed

m/min

25~45

Total Power

kW

160

260

Overall Dimension (L×W×H)

m

9.1×7.9×7.1

18×9.5×11.5

Total Weight

t

30

40
