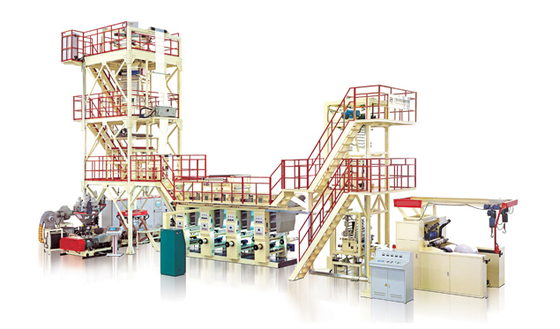

RBHD3 Three-layer Coextrusion Heavy Duty Blown Film Line

This line is designed to process a wide variety of resins such as LDPE, LLDPE, mLLDPE, EVA and HDPE. It produces film with excellent performance characteristics of high strength, toughness, anti-block, anti-moisture, transparency and heat-seal, all of which are highly desired in the heavy sack packaging applications. Comprising a complete integration of a blown film line with inline printing, embossing, gusseting and winding sections, the line provides a turn key solution to our customers.



Main Specifications：

Model



RBHD3-900QA

Layers



3

Max. Film Layflat

mm

750

Film Thickness

mm

0.15～0.25

Max. Output

kg/h

260

Resin



LDPE, HDPE, LLDPE, mLLDPE

Screw Diameter

mm

ф60/ф70/ф60

Screw L/D Ratio

L/D

30：1

Max. Screw Rotating Speed

r/min

70～120

Oscillating Haul-off Type

kW

±360°Horizontal Oscillating Haul-off System

Printer Type



Gravure Printing Press

Max. Winding Diameter

mm

ф1500

Total Power

kW

264

Overall Dimension（L×W×H)

m

28×9×10

Total Weight

t

30

 All the above specifications are for your reference only. Please contact us for more details.
