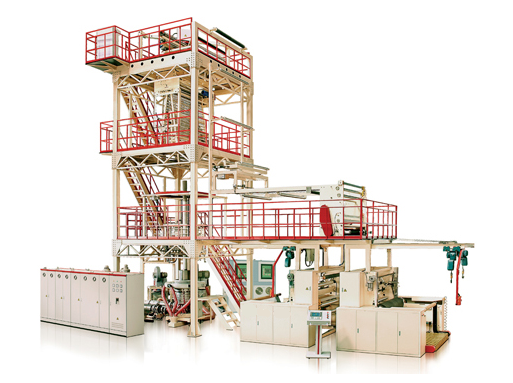

RBM2 TPU Blown Film Line
TPU film has good performance of extension, elastic recovery, softness and biocompatibility as well as excellent resistance against water, wear, bending, low temperature, oil and ultraviolet (UV) radiation. It is widely used in various fields, such as high-grade footwear, clothes, fabric and lining materials of diapers. In medical and health field, it is used in surgical clothing, medical mattress, ice packs, bandages, medical permeable adhesive tape, face fabrics and lining materials of surgical bandage. In national defense field, this film can be used in weapons sealing, field tents, life jackets, inflatable boats and other fabrics and lining materials. In the industrial field, it is often used for fire prevention, thermal insulation, sound insulation materials, aircraft components and decorating, automobile parts, waterproof stickers, compression gland, transmission belts, insulation board and security bullet-proof glass.
Main Specifications：
|
Model |
|
RBM2-1700Q |
|
Layers |
|
2 |
|
Max. Film Layflat |
mm |
1600 |
|
Film Thickness |
mm |
TPU:0.015~0.1 PE:0.01~0.03 |
|
Max. Output |
kg/h |
250 |
|
Resin |
|
TPU, LDPE |
|
Screw Diameter |
mm |
ф75/ф75 |
|
Screw L/D Ratio |
L/D |
30:1 |
|
Max. Screw Rotating Speed |
r/min |
70~120 |
|
Main Motor Power |
kW |
75/55 |
|
Bubble Cooling Type |
|
Precision dual-lip air ring, Internal bubble cooling system |
|
Oscillating Haul-off Type |
|
±360°Horizontal oscillating haul-off system |
|
Haul-off Speed |
m/min |
60 |
|
Total Power |
kW |
270 |
|
Overall Dimension (L×W×H) |
m |
14.5×7.5×10.6 |
|
Total Weight |
t |
22 |
All the above specifications are for your reference only. Please contact us for more details.
