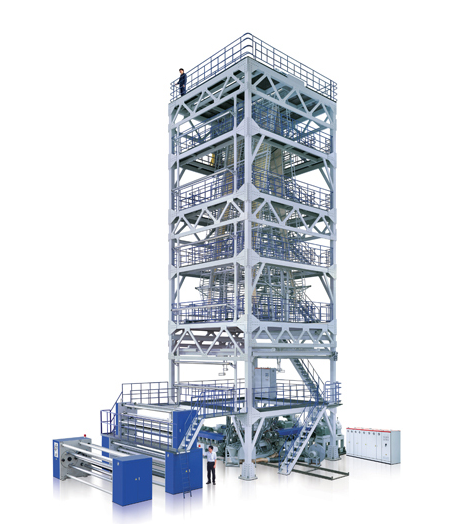

RBM3NA Three-layer Coextrusion Agricultural Blown Film Line
RBM3NA Three-layer Coextrusion Agricultural Blown Film Line is able to produce agricultural film of a wide range of width up to 20 meters. It is suitable for LLDPE, mLLDPE, LDPE, HDPE, EVA, etc.
The line features the advanced central feeding spiral die head, IBC (Internal Bubble Cooling) system and automatic winding technology. It combines mechanical, electrical, pneumatic and hydraulic technology and items of patented technology.
Main Specifications：
|
Model |
|
RBM3NA-20000 |
RBM3NA-16000 |
RBM3NA-14000 |
|
Max. Film Open Width |
|
20000 |
16000 |
14000 |
|
Film Thickness |
mm |
0.06~0.14 |
0.06~0.14 |
0.06～0.14 |
|
Layers |
mm |
3 |
||
|
Resin |
|
LLDPE、mLLDPE、LDPE、HDPE、EVA |
||
|
Max. Output |
|
2000 |
1500 |
1200 |
|
Screw Diameter |
kg/h |
ф160×3 |
ф150×3 |
ф130×3 |
|
Screw L/D Ratio |
mm |
25:1 |
30:1 |
30:1 |
|
Max. Screw Rotating Speed |
L/D |
65 |
65 |
80 |
|
Total Power |
r/min |
1600 |
1450 |
900 |
|
Haul-off and winding speed |
kW |
25 |
||
|
Overall Dimension (L×W×H) |
m/min |
32×16.5×28.7 |
27.5×15.5×24.5 |
16×9.8×22 |
|
Total Weight |
m |
400 |
320 |
250 |
All the above specifications are for your reference only. Please contact us for more details.
